BIG ANNOUNCEMENT: 5 Year Full Warranty on Our All New Fiber Laser Machines – Parts, Labour, Source, Head & UK Support!

Fabertec FL4
1530, 2030, 2040

Introducing the FABERTEC FL4 Fiber Laser, a perfect solution for laser cutting subcontractors who demand unparalleled performance and reliability around the clock. With the FL4, you can process laser-cut parts non-stop, 24 hours a day, 7 days a week, ensuring maximum productivity and efficiency for your business.

Comparable to models from well-known brands that typically cost between €400k-900k, the FL4 Fiber Laser offers exceptional value starting from just €78k + VAT for the 2kW laser source configuration. Despite its affordable price point, the FL4 does not compromise on quality or capabilities.

Designed to operate as economically as possible, the FL4 boasts a robust construction and advanced features that enable it to handle a wide range of applications with precision and speed. From intricate designs to heavy-duty materials, the FL4 fiber laser delivers consistent and reliable results, allowing you to maximize the value of your investment.

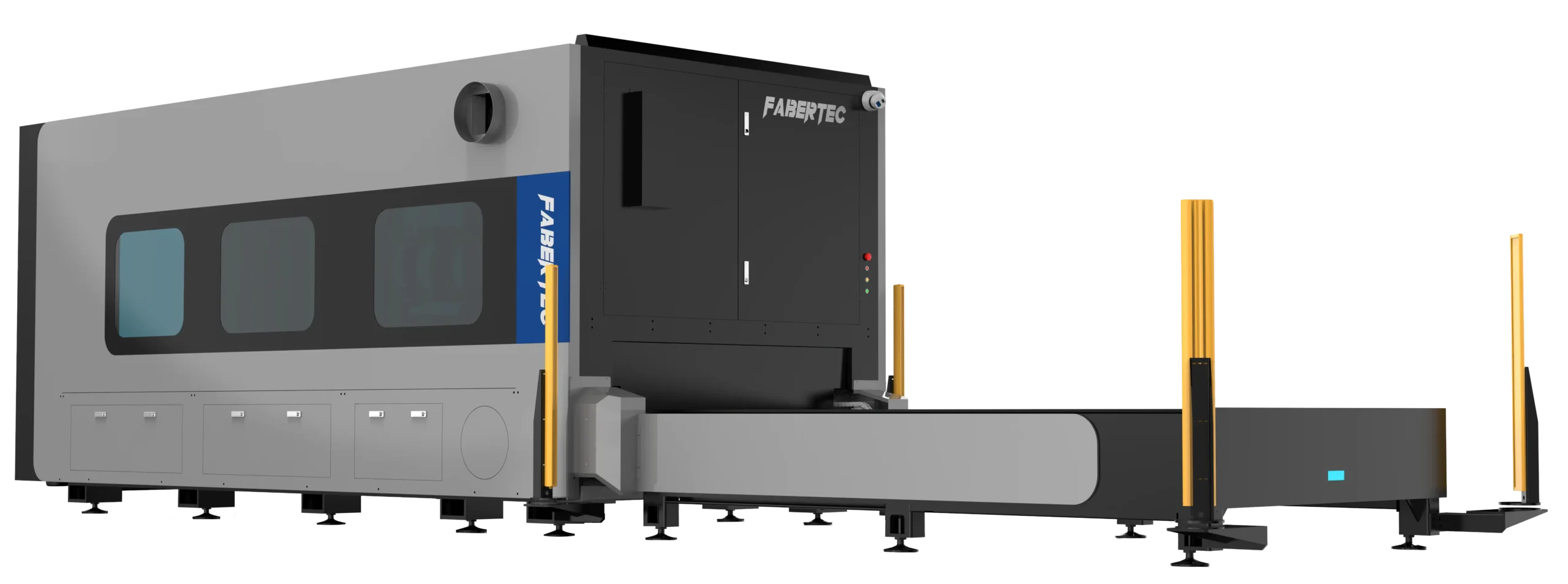

fabertec fl4 1530 fiber laser machine

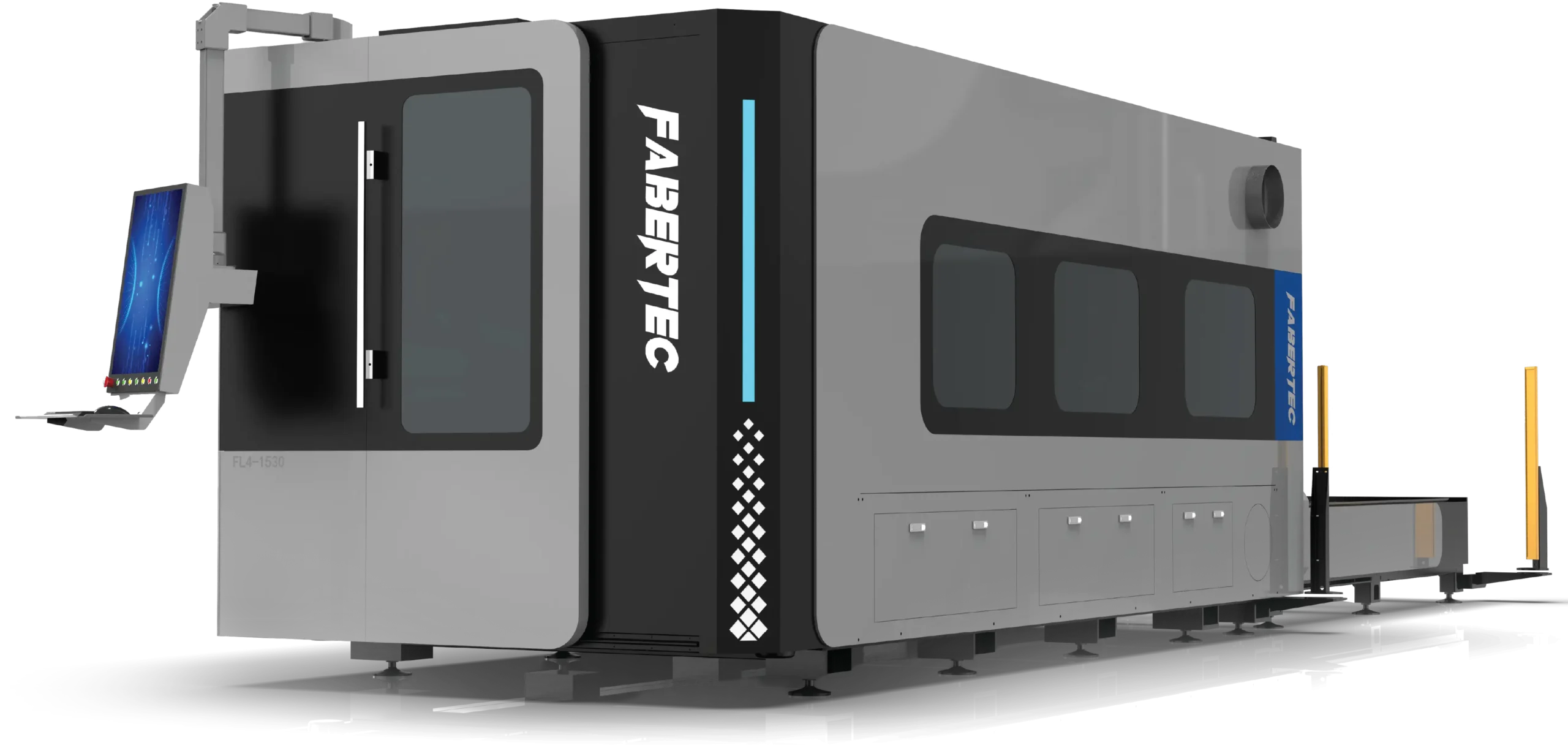

fabertec fiber laser fl4

Maximizing Uptime, Efficiency, and Maintenance-Free Operations

FL4 maximizes uptime with an integrated shuttle table system, which allows one table to be loaded/unloaded while cutting on the other table. Table changeover is completed in just 45 seconds. Sheet edge recognition will adjust all your vectors to unaligned metal sheet on slats. Automatic height adjustment, laser head collision prevention and frog leap, will keep you cutting all day long without any stopovers. Micro Joint will allow you to cut tiny pieces, leaving a tab between elements to remove larger sections, instead of fishing out for small parts in floor drawer.

Fly cutting, circle centering, frame border and other are adding to efficiency in your operations   Our fibre laser cutting machines are built to require little to no maintenance, and our laser sources may operate for up to 100,000 hours without calibration or expensive replacements. Only inexpensive spares, like lenses, lens covers, and nozzles, are needed. For businesses that need to create thousands of pieces in just a few days, fibre lasers for metal cutting are basically the only option.

The FL4 with a standard minimum table size of 1500 x 3000mm and a dual-table conveyor system, FL4 simplifies operations. Cut on one table while the second retracts, enabling easy sheet loading via forklift, magnetic crane, or clamp crane.

LASER SOURCE - THE HEART OF FIBER LASER CUTTING MACHINES

In all fiber laser cutting machines, the laser source is one of the most important parts that allows for smooth and accurate cuts. At FABERTEC we offer reliable and affordable MAX/RAYCUS laser sources.

Before 2024, we considered IPG as the go-to laser source, but after gaining in-depth training in laser source repairs and opening the first UK repair center,        FABERTEC PHOTONICS, we’ve come to value MAX/RAYCUS brands with much more respect.

MAX/RAYCUS sources offer the same cutting quality, speed, and accuracy as higher-priced alternatives but at around 30–40% of the cost. What’s most important in our opinion is the fact that these affordable brands can be repaired with ease, spare parts are readily available, and they’re designed to be more open for local service centres. Of course, the final choice depends on your budget and preferences. At FABERTEC, we supply and install MAX or RAYCUS sources from our UK branch with full support.

⚠️ When cutting reflective materials like brass or copper, you must ensure the material is properly pierced to prevent bounce-back light from returning to the laser source. Damage caused by such reflections may not be covered by the manufacturer.

fabertec max-raycus photonics laser source

Fabertec Fiber Laser FL4 Build Quality

Parts or solutions we offer with every FL4 models

FSCUT CONTROLLER

The best “budget” controller in the world FSCUT 4000e/8000e used by tens of thousands of machines around the world. Same brand laser head and software to work in perfect unison.

BOCI 421/642 LASER HEAD

Same brand controller and software. Multiple safety sensors like temperature, pressure, and lens cleanliness to prevent damage and inform the operator well ahead of any problems.

DOUBLE SHUTTLE TABLE

Cut continuously without breaks to clean skeletons and parts. 45 seconds to exchange table, measure sheet angle, and cut the next sheet. Cut 100 sheets per day with ease.

FULL SAFETY BARRIERS

The rear table is protected by safety barriers. Protect your operators when exchanging tables.

CCTV CAMERAS

CCTV cameras inside the main body and rear table. The operator has a full view of what is happening in the machine and rear table.

DUST EXTRACTION

Fully sealed main body with extraction points to keep the machine and workshop clean and safe for employees. Additionally, below the table zones operate extraction points – focusing extraction where the laser head is cutting.

Smallest footprint in the industry. We know that space in UK workshops is worth a fortune.

LASER-RATED VISIBILITY SCREENS

Full visibility into the main body through laser-rated protection screens. They are designed to protect against the same wavelength of the laser as the machine is generating.

MAX LASER SOURCE

The most advanced laser source, very close in quality to IPG laser sources but at a fifth of the price. Fabricators no longer need to spend a fortune to accurately cut metal parts.

CYPCUT

Used by tens of thousands of operators on lasers around the whole world. Very easy to learn and cut in literally 30 minutes. Has all of the options to create vectors, leads, arrays, fly-cutting, sheet angle, nesting, micro joints, circle centering, countersink for screw heads, and many more.

Affordable prices to allow you to speed up your workshop processes.

max laser   6kw  12kw 20kw   30kw
 FABERTEC FL4 1530 €120,000 €189,000 €231,000 €272,000
 FABERTEC FL4 2030 €156,000 €225,000 €266,000 €308,000
 FABERTEC FL4 2040 €173,000 €243,000 €284,000 €326,000
Metal Dust Extractor Filtered 2M €7,000
Metal Dust Extractor Filtered 4L €11,000
Metal Dust Extractor Filtered 6L €14,500
Metal Dust Extractor Filtered 8L €17,000
Spare Filter €300
Spare Valve €200

Lease Purchase

MODEL  TOTAL PRICE  MONTHLY    WEEKLY DAILY
 FL4 1530 6kW MAX €120,000   €3,219   €742 €106

NOTE: Figures shown for a 5-year lease term; VAT payable upfront.

VAT - Not included in the price above.

Dust Extractors Included - 4L for 6kW | 6L for 12kW | 8L for 20kW & 30kW

fiber laser full spare parts
fiber laser water chiller and ipg laser source

Have you ever wondered what makes the Fabertec fully enclosed double-table fiber laser cutter so affordable? Here's why:

Why Fabertec Fiber Lasers are so affordable?

Delivery

We provide free of charge delivery of the FL4 machine. On the Client side you will need forklift 5t-7t with 2000-2400mm forks (dependable on model) to unload and position in workshop. After delivery our friendly and patient engineers will visit your workshop to finalise installation, commission and provide training.

Don't worry if on first day you may not be very fluent with all operations (most operators cut on their machines in about 1h). We will provide you with our WhatsApp number where engineers will help if stuck or doubt.

Warranty

  • 5 Year Full Warranty (Parts, Labour, Source, Head & UK Support) included - for all new Fiber Laser Machines supplied from 1st June 2025 onwards.
  • Obligatory maintenance visits every 12 months to keep your machine in top condition £1,500 + travel time (£85/h) + Fuel surcharge (£0.90/m)
  • Machines supplied earlier continue under their original terms and conditions.

What is Included in the Package?

Fully assembled machine ready for work from our UK based workshops, all consumables like nozzles, lenses. Laser source and matching chillers. Demineralised water to fill your chiller on installation day. Lifetime software to draw and operate machine. Delivery on hiab, installation and training. WhatsApp support to help operators with any issues.



LASER HEAD - THE "FOCUS" OF THE MACHINE

Dust Protection by Design

Multiple protective lenses are easily accessible to replace. Focusing and Collimating lenses are accessible without the need to disassemble the laser head.

Smart and Safe Processing

Monitor the gas pressure of first 2 lower protective lenses to provide you with early warning in case of drop in pressure.

Collision Screws

Fiber laser head provides an extra layer of protection against collisions and environmental hazards.

Protective Lenses Monitoring System

Upgraded controller algorithm integrated with sensors to prevent in most cases damage to lenses caused by pollution.

FL4 Controller Features

Envelope Check of fiber laser controller

Envelope Check

Micro Joint of fiber laser

Micro Joint

One-Path FlyCut of fiber laser

One-Path FlyCut

Up to 6KW

  • Micro Joint – If you are cutting hundreds of small elements and not fancy digging them out from drawers – leaving a skeleton sheet with tiny tabs to remove, most of them, in one go.
  • Scan to Import – Just scan your drawings to create vectors ready for cutting.
From 6kW to 15kW
  • Fast Piercing – Very effective for thinner sheets.
  • Deslag – Improve quality on piercing by burning out slag. Especially important for thick plates.
  • 5 Stage Piercing – Even more stages for very thick plates at the end of your laser source capability.
  • Corner Technique – Improve quality on the sharp corners
  • Quick Cutoff – Quickly cut off by pressing one button sheet edge on X or Y axis.

Fabertec FL4 Dimensions

fabertec fl4 1530 fiber laser dimension
fabertec fl4 2030 fiber laser dimension
FABERTEC FIBER LASER FL4 2040

Fiber Laser Cutting Specification

Responsive Notification Boxes
Will Cut
Will Cut with Altered Settings/Dross May Be Present
Will Not Cut



Material MAX 0.5mm 1mm 1.5mm 2mm 3mm 4mm 5mm 6mm 8mm
MILD STEEL 1kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 1kW ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 1kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 1kW ✔ ✔ ✔ ✔ ✘
COPPER 1kW ✔ ✔ ✔ ✘
Material MAX 0.5mm 1mm 1.5mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm
MILD STEEL 2kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 2kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 2kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
BRASS 2kW ✔ ✔ ✔ ✔ ✘
COPPER 2kW ✔ ✔ ✔ ✘
Material MAX 0.5mm 1mm 1.5mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm
MILD STEEL 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
BRASS 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
COPPER 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
Material MAX 0.5mm - 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm
MILD STEEL 4kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 4kW ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 4kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 4kW ✔ ✔ ✔ ✘
COPPER 4kW ✔ ✔ ✘
Material MAX 0.5mm - 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm
MILD STEEL 6kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 6kW ✔ ✔ ✔ ✔ ✔ ✔ ✔
STAINLESS STEEL 6kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 6kW ✔ ✔ ✔ ✔
COPPER 6kW ✔ ✔ ✘
Material MAX 0.5mm - 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm 32mm 34mm 36mm
MILD STEEL 8kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 8kW ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 8kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 8kW ✔ ✔ ✔ ✘
COPPER 8kW ✔ ✔ ✘
Material MAX 0.5mm - 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm 38mm 40mm 42mm
MILD STEEL 12kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 12kW ✔ ✔ ✔ ✔ ✔ ✘ ✘
STAINLESS STEEL 12kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 12kW ✔ ✔ ✔ ✘
COPPER 12kW ✔ ✔ ✘

Please note: This document provides a general overview of the cutting parameters achievable with the MAX Laser Source. Areas marked in red represent "peak" performance for specific thicknesses. If your primary cutting requirements fall within the red range, it is advisable to consider upgrading your kilowattage to achieve improved performance and feed rates.

See our video demonstrations below:

Fabertec Fiber Laser FL4 12kW Precision Cutting & Engraving 5mm Stainless Steel

Cutting Samples

CUTTING-SAMPLES-OF-FIBER-LASER
FIBER LASER CUTTING SAMPLES
Fiber Laser Cutting Samples

Some of the important features of the Fabertec FL4 Fiber Laser

By using branded servo motors from Fuji or Yaskawa our fiber lasers can achieve speeds of up to 80m/min.

You have choice of IPG German/US brand or MAX/RAYCUS Laser source. We stock a lot of them in UK branch.

All of our FL2 machines have integrated controller and laser head which can be upgraded in no time from 1kW – 6kW. Thicker sheets in a year time? Just invest in more powerful laser source.

We are based in Lincolnshire and Fabertec being British brand we understand that you need to have your machine operational in no time in case of breakdown. Our engineers will always be on hand to help you out.
For rapid movements and direction changes. The lighter the gantry the quicker your fiber laser will work. Also less stress on structural rails and guides.
The FL2 features a smart compact electrical cabinet, even for the smallest of workshops, the wheels provide easy movability.
The FL2 offers a large screen display, not only does it look the part this comes in handy when nesting parts, adjusting vectors or even drawing new ones - all from one easy to use software.
Easy to replace bed slats. Just cut your own from 3mm mild steel and replace if old ones are no good anymore.
The FL2 has a 3 way solenoid valve to ensure smooth and fast gas changes. Just click in software what gas you want to use and controller will take care of the rest.
The FL2 features its own cad/cam package this allows you to draw and nest parts without flicking through different programs. What's most important it's so easy to use that even 15 year old apprentice will be cutting after 30min training.
Strong and durable linear guides with powerful servo motors allows FL2 to move rapidly and quite fast. That's very important when you investing in more KW source and cutting thin sheets where gantry can travel even at 40-50m/min
Move, set, specify datum point, switch on laser, red dot, start, pause, stop etc - all at your finger point.
The FL2 has a great loading facility at the front of the machine, the steel ball bearings allow for heavy sheets of material to be loaded with ease.
The scrap trays on the FL2 are perfect for easy access and emptying, they slide with ease even when they are full.

Are you looking for a fully enclosed single table Fiber Laser machine?

Please consider Fabertec FL3 Fiber Laser Cutter



Technical specification

  • Max/Raycus or German IPG laser source – advertised manufacturers fiber laser lifespan up to 100,000 hours – the equivalent of 10h daily cutting for 27 years!
  • Structure fully welded and heat destressed
  • Full servo motors Fuji or Yaskawa installed
  • Speeds up to 80 meters per minute
  • Aluminum reinforced gantry for higher speeds
  • Hiwin runners with automatic lubrication
  • Digital touch height control – laser head follows sheet height on the table (DTHC)
  • Automatic height adjustment – laser heads follow sheet height on the table
  • Automatic calibration – the controller automatically checks laser settings
  • Large monitor with Cypcut software
  • Handheld wireless control panel
  • Draw, adjust, import DXF/PDF, create a lead in/out – all straight from the machine
  • Two separate inlets for oxygen/nitrogen controlled by electric valves
  • Automatic focus of laser head from software
  • Supplied with array of nozzles, protective lenses, spares
  • Runners and linear gear protection against ​laser and sparks possible damage
  • Drawers underneath the table for offcuts/parts
  • Two automatic tables installed
  • Supplied with powerful chiller also with the heating option – in case workshop temperature goes below 0 to prevent damage from water freezing
  • Optional dust extractors with fire protection to keep the warehouse free from metal dust
  • Single phase (230v) up to 2kw laser source
