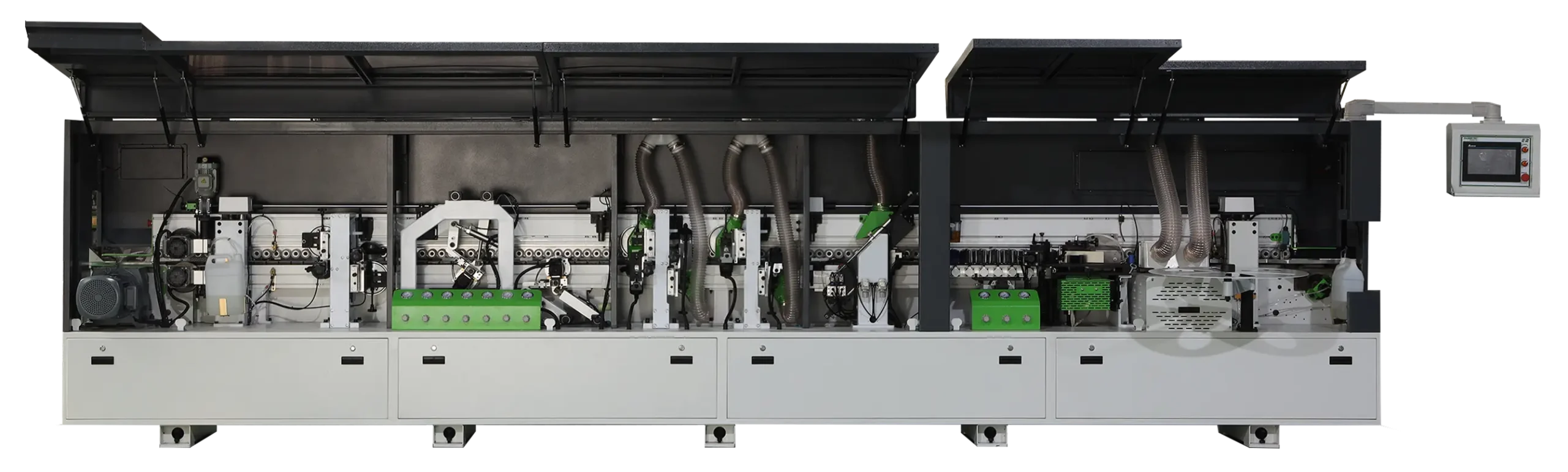

Edgebander E2

Panel Workflow Stages

Follow the step by step journey of a panel as it moves through each stage, from edge preparation to the final polished finish.

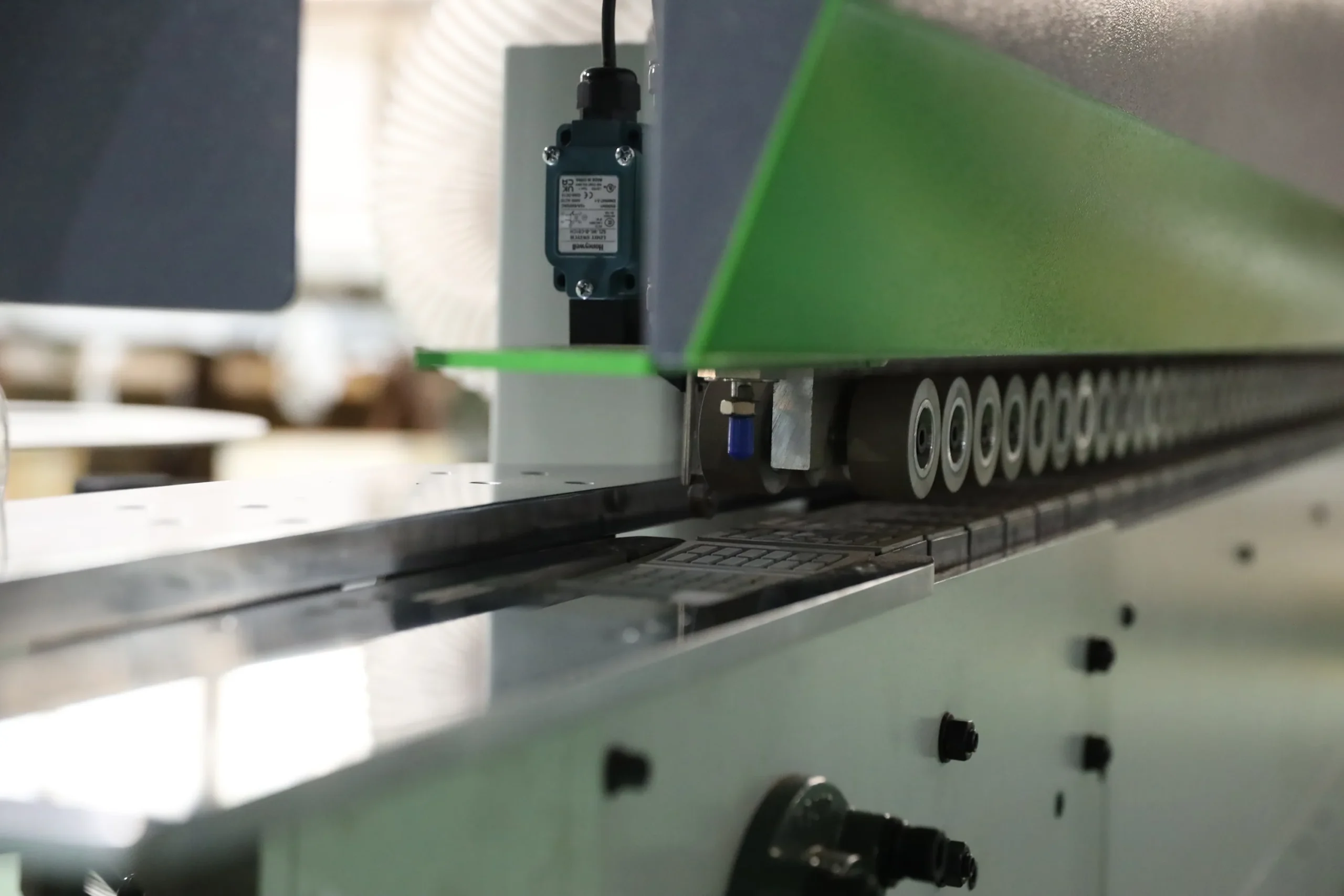

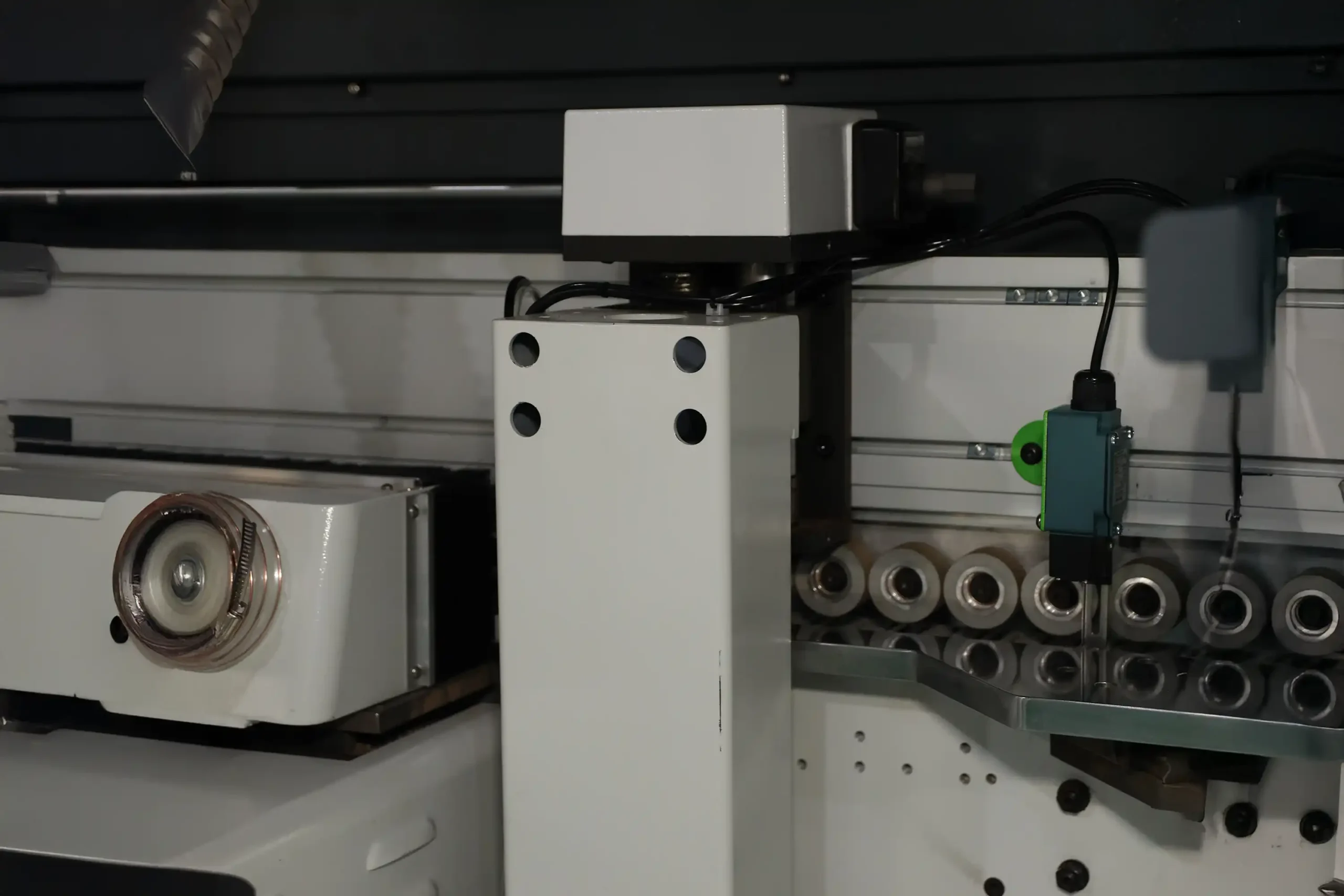

Auto Electrical Lift

Electrical lift to automatically set for example 18mm, 22mm or 25mm boards.

Air Piston

Air Piston opens when the machine is ready to accept the next panel.

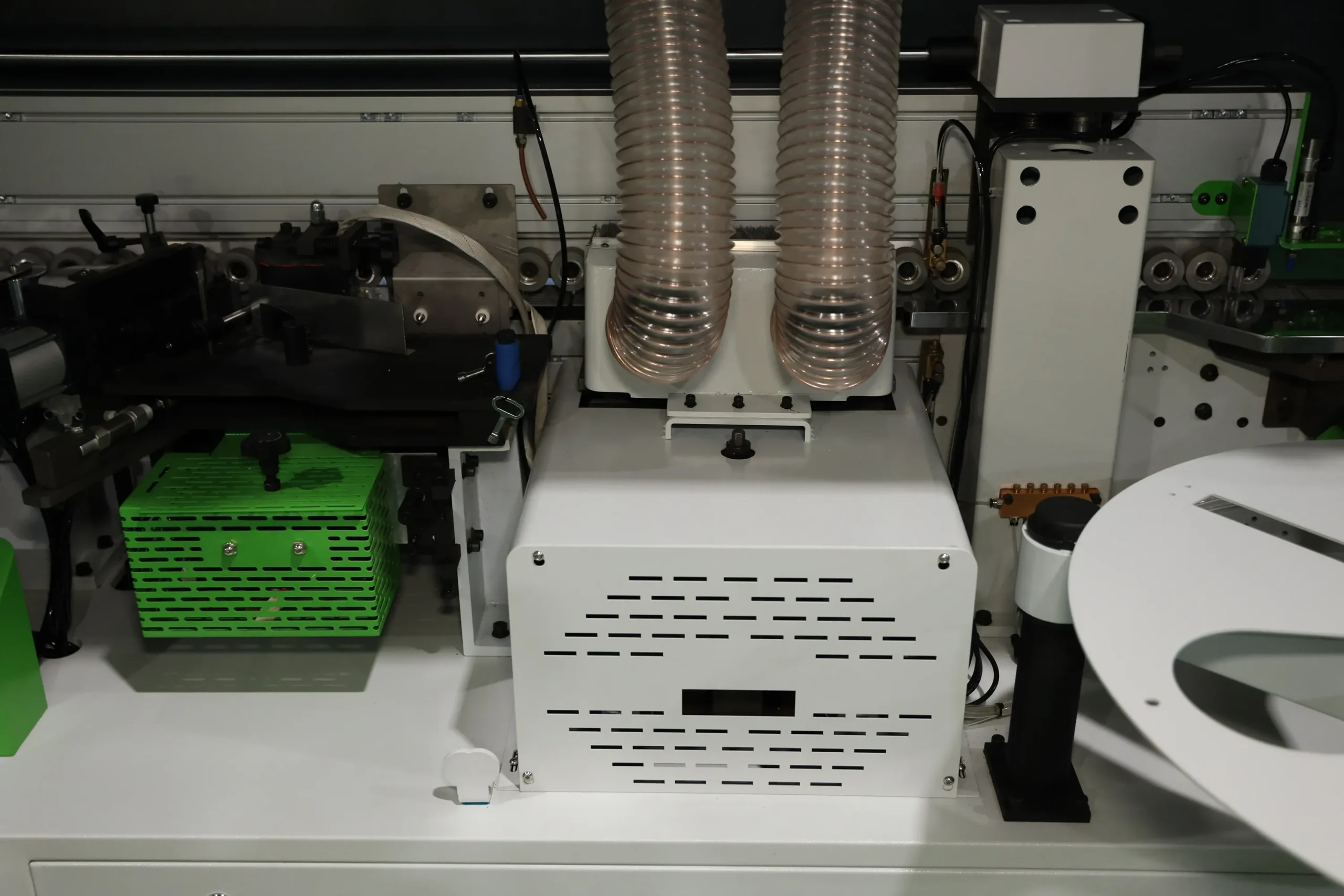

Diamond Premilling

Uses large diameter diamond blades for longer-lasting cutters that need less sharpening.

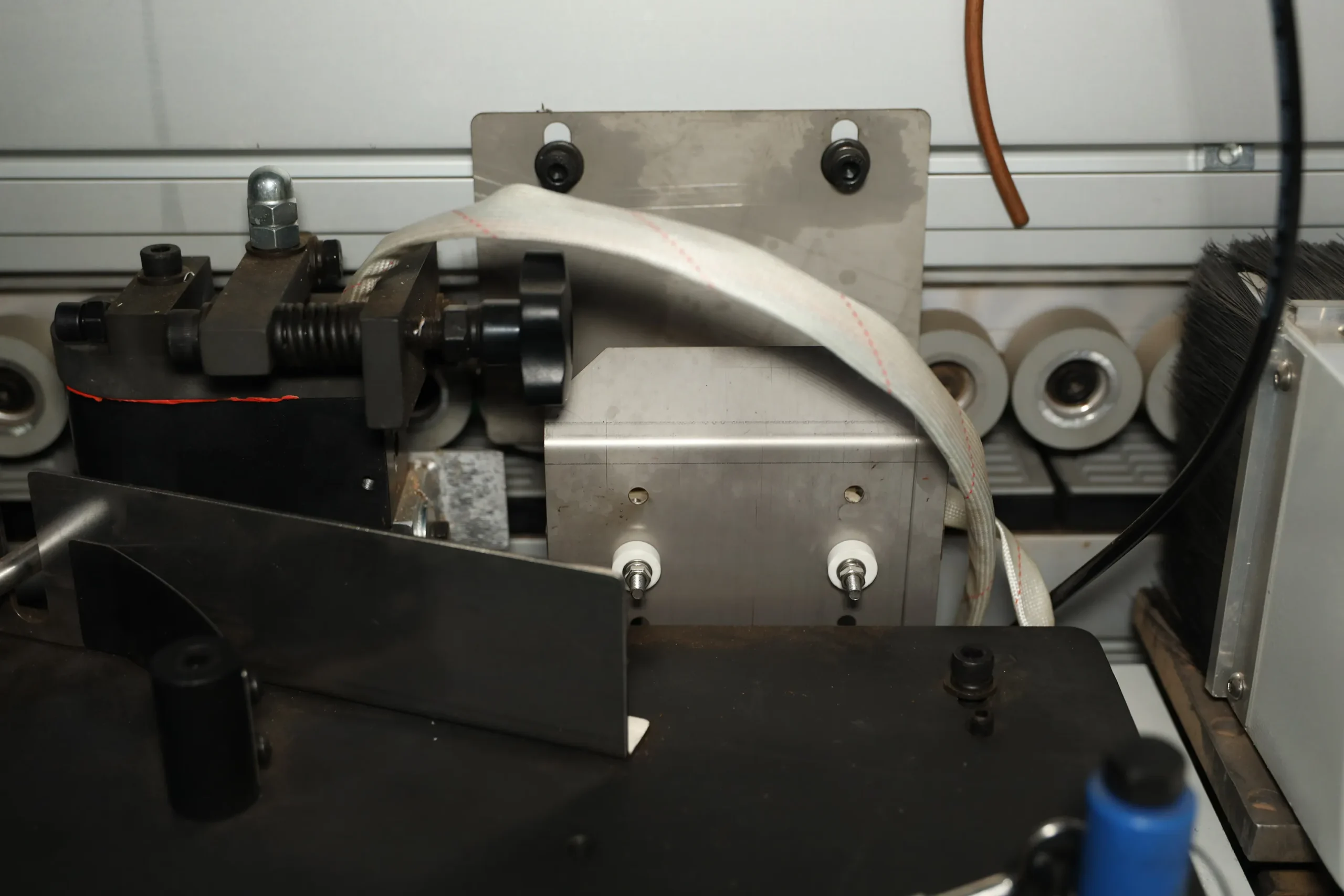

Infrared Preheat

Prevents adhesion issues in cold workshops for smooth operation all year.

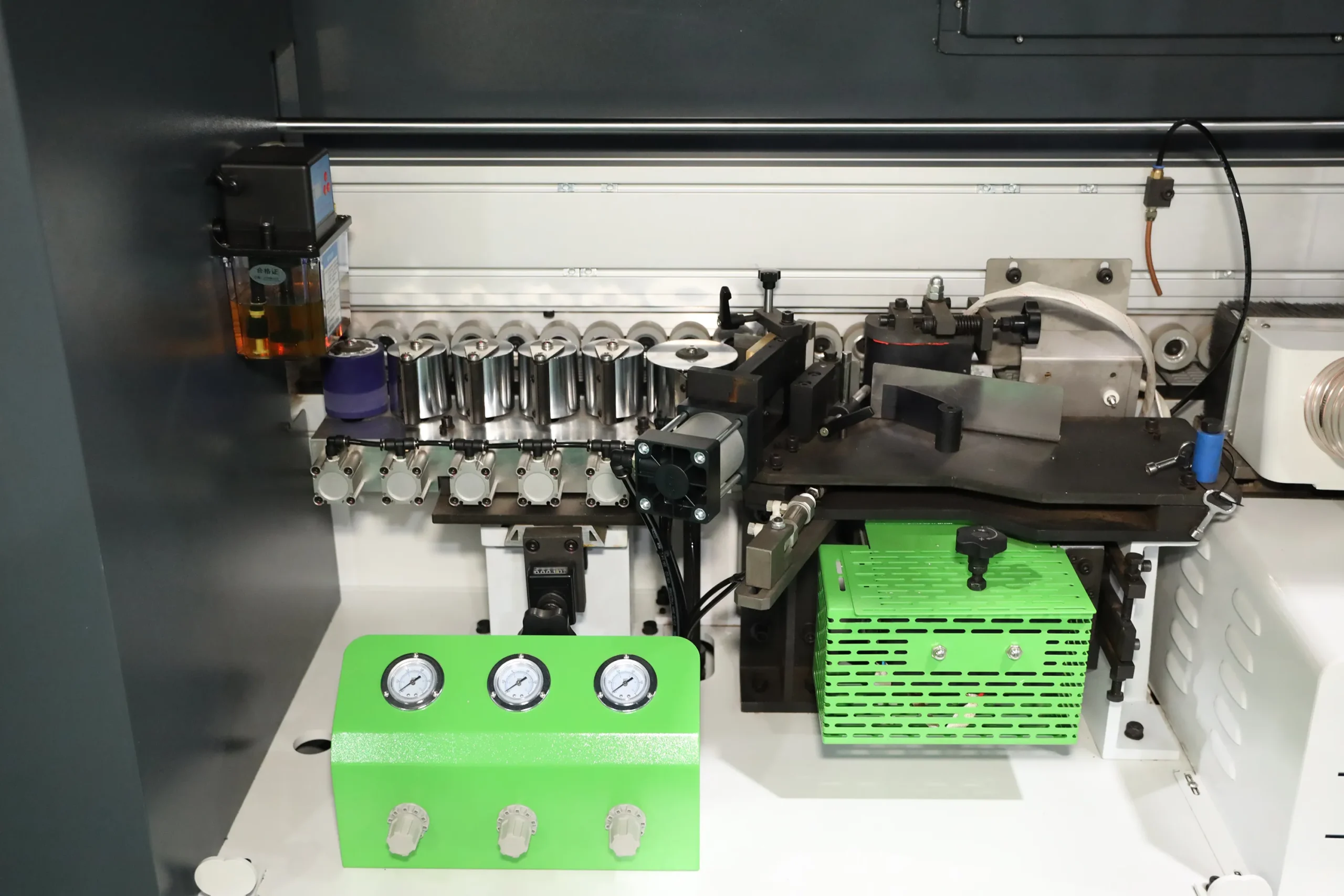

Glue Pot & Guillotine

Integrated glue pot with tape guillotine for clean, efficient edge processing.

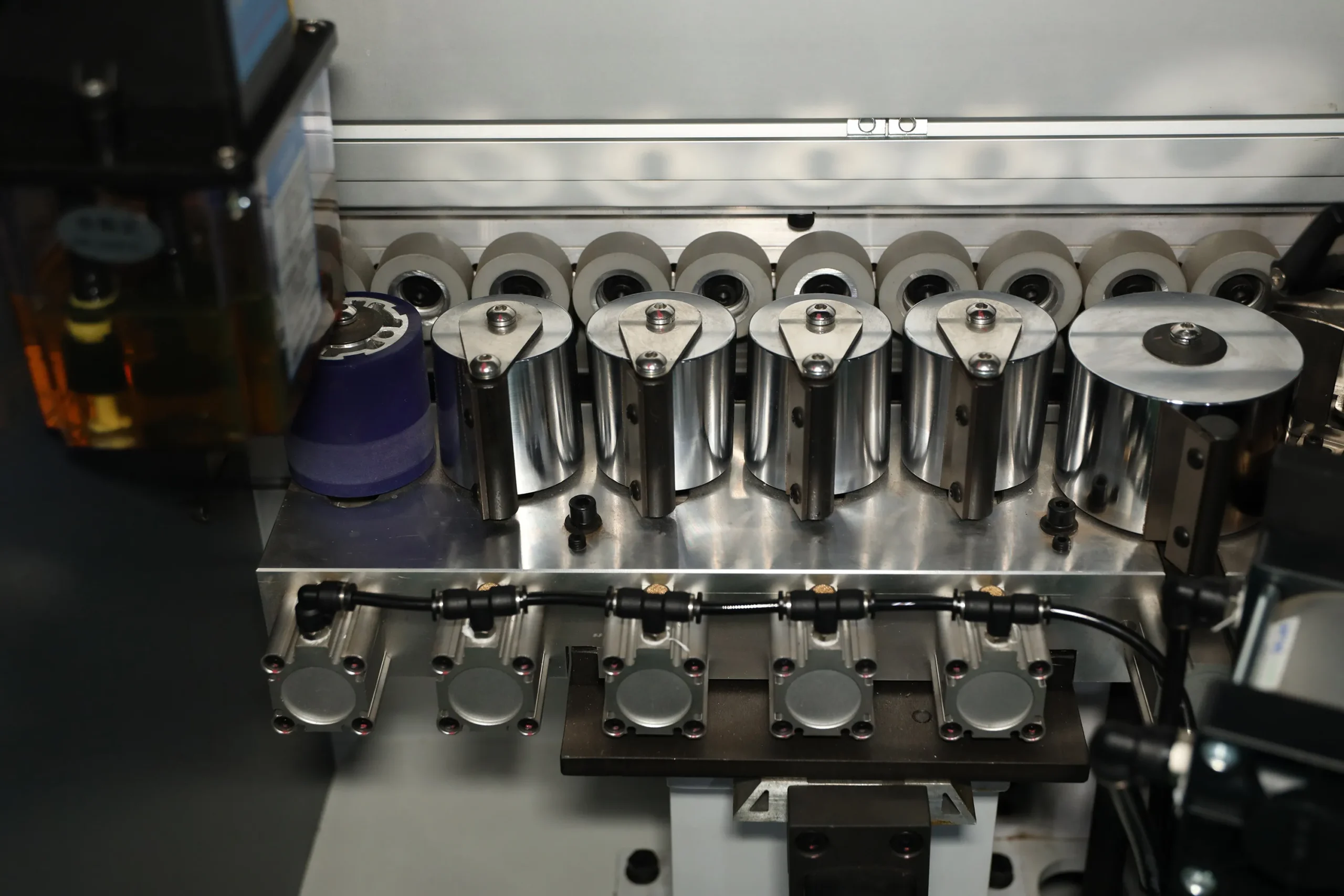

6 Pressure Rollers

Features 6 adjustable rollers for consistent and firm edge bonding.

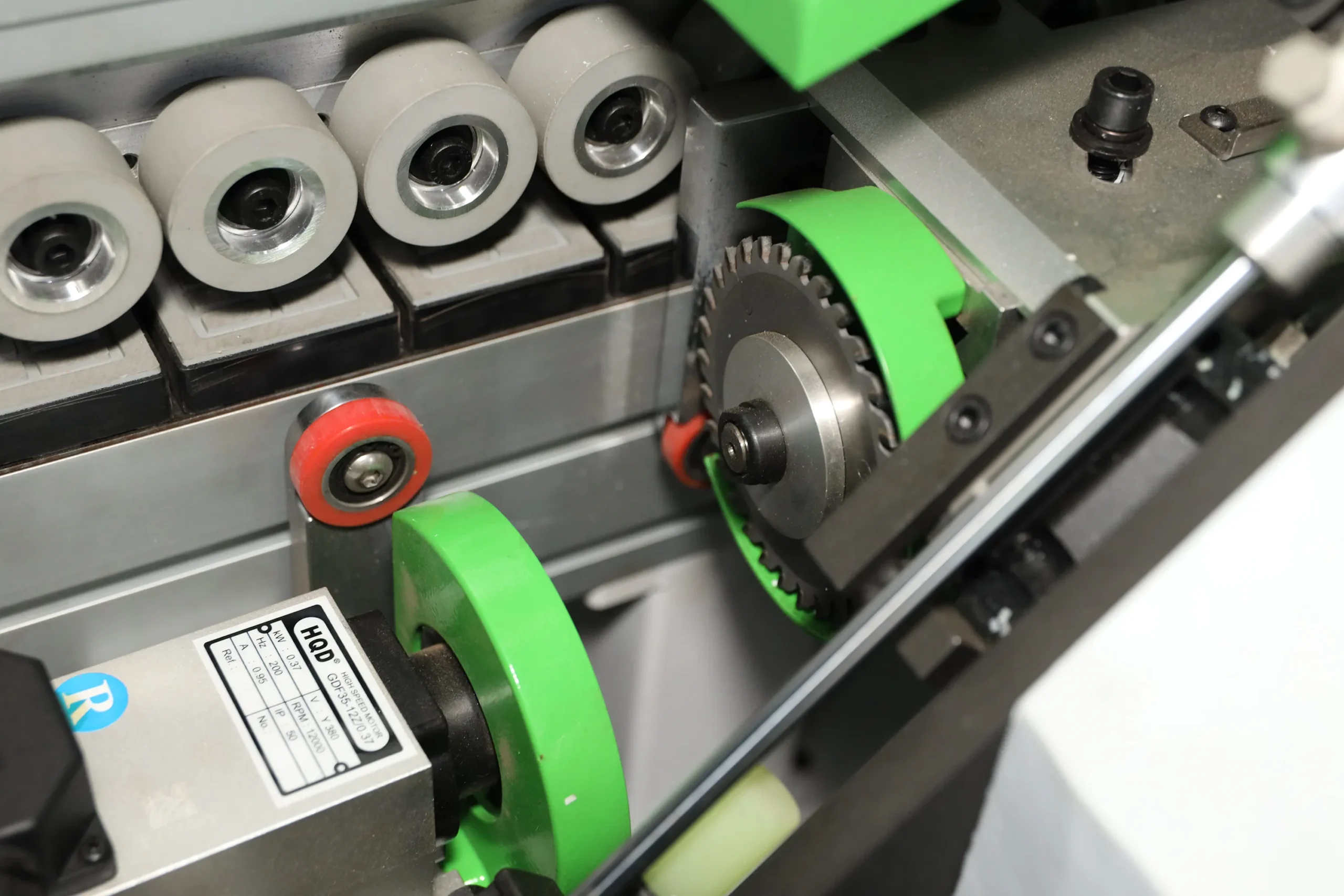

2-Motor End Trim

Dual motors enable faster trimming with no need for fine adjustments.

2 Scraping Motors

Dual rough scraping motors ensure clean, precise edge finishing.

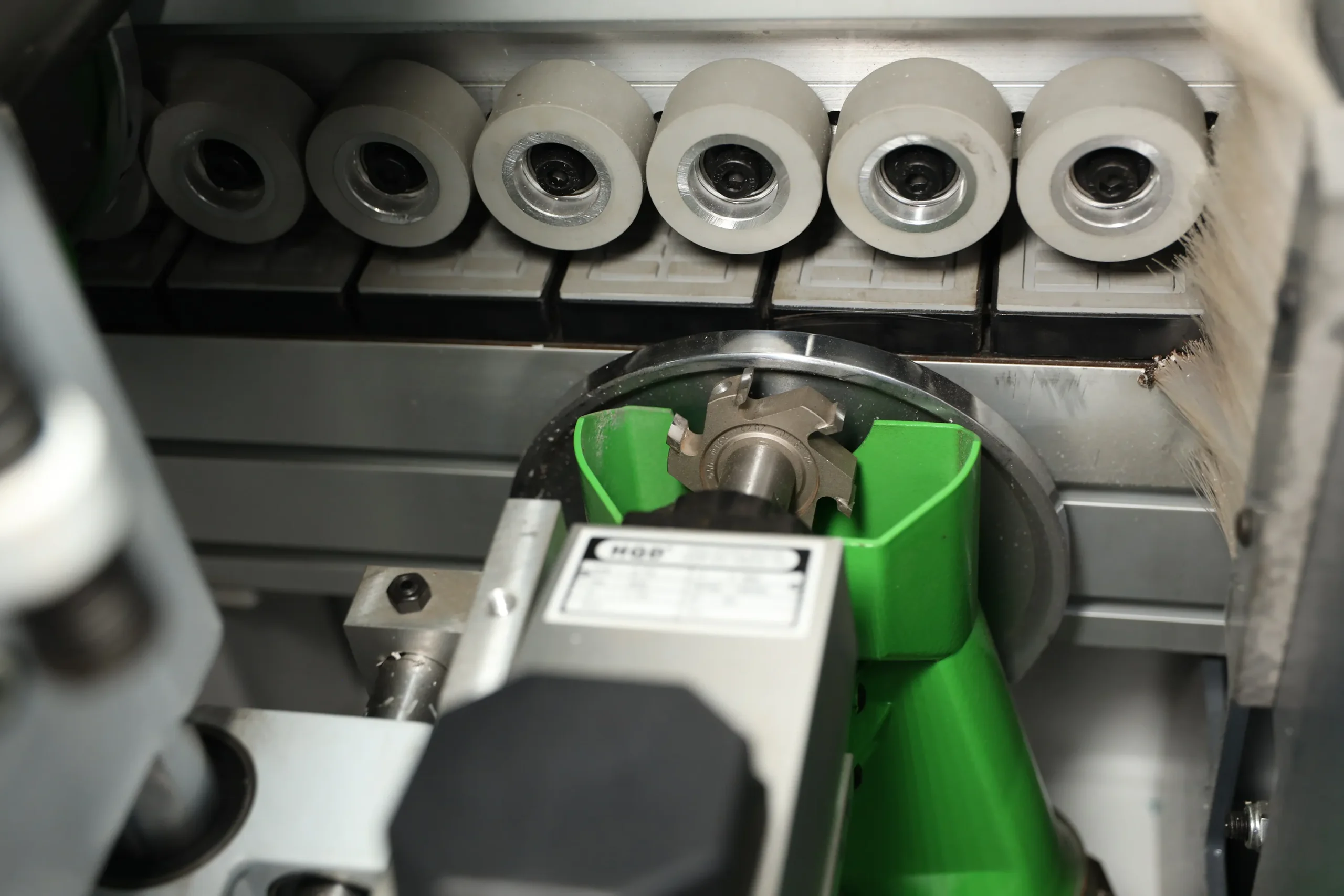

2 Fine Shaving Motors

Adjustable motors for precise shaving of PVC or veneer to the desired finish.

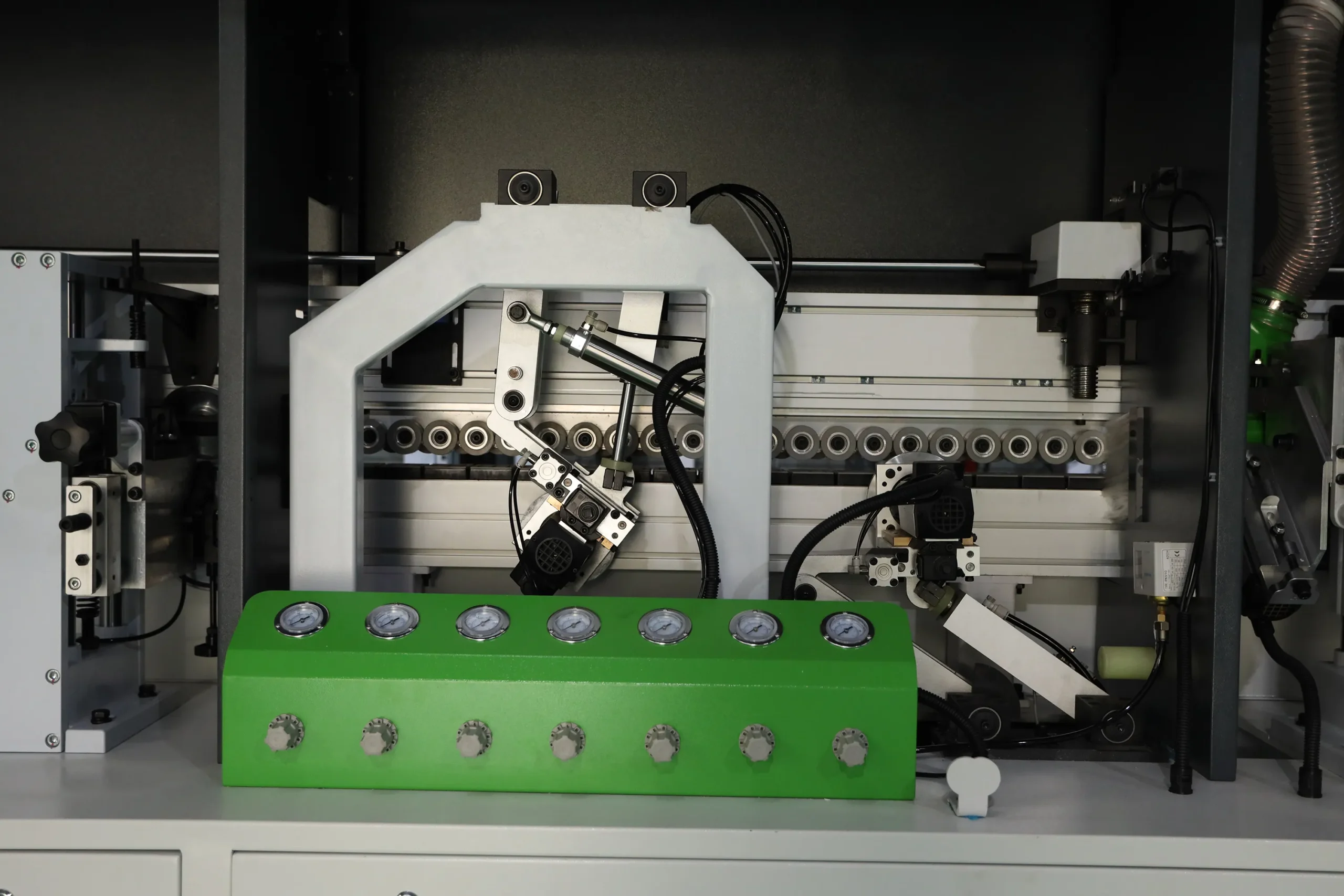

Corner Rounding

Equipped with 2 motors for fast, accurate corner rounding on edges.

Flat Scrapers

Ensure smooth edge surfaces by removing excess glue and material.

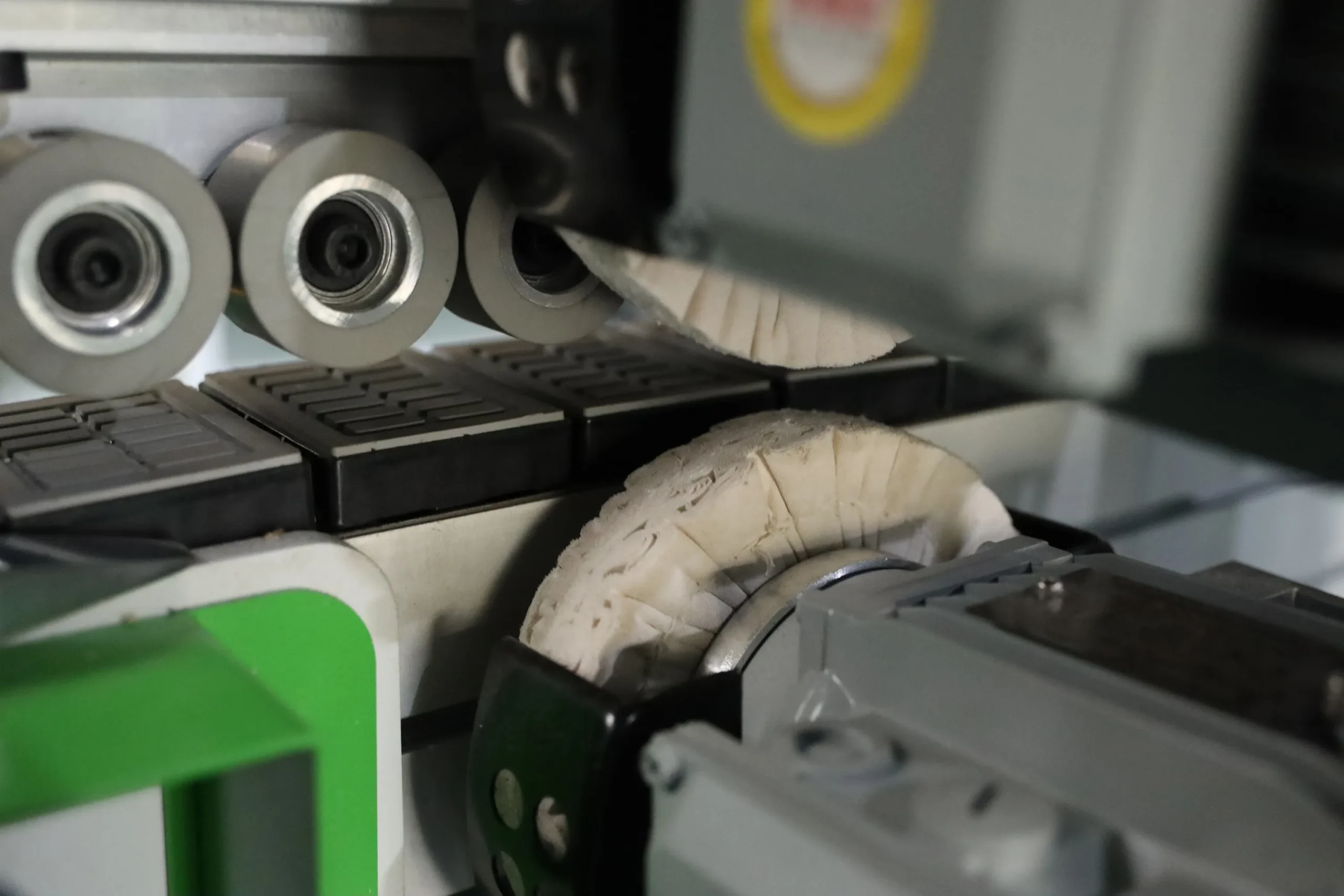

Glue Cleaning & Buffing

Jet liquid cleans residue before buffing wheels polish edges for a perfect finish.

Technical specification

Edge thickness 0.4-3mm
Panel thickness 10-60mm
Minimum board length ≧150mm
Minimum plate width ≧60mm
Working pressure 0.6Mpa

Feed speed 16-20m/min
Total power 16.5 kW
Weight 2300KG
Overall size 6800*950*1750

Affordable prices to allow you to speed up your workshop processes.

MODEL	PRICE
Edgebander E2	€26,000 +vat

Lease Purchase

MODEL	TOTAL PRICE	MONTHLY	WEEKLY	DAILY
E2	€26,000 + vat	€585	€135	€19

NOTE: Figures shown for a 5-year lease term; VAT payable upfront.

Delivery / Installation / Warranty

Delivery fees for Fabertec Edgebanders are based on your location and distance from our warehouse. To get an accurate quote, please get in touch with our team directly.

Installation and training are available upon request and are carried out by our skilled engineers. This service is charged separately, depending on your workshop location and installation requirements.

All Fabertec Edgebanders include a 12-month warranty, giving you peace of mind with full support and reliable after-sales service.
