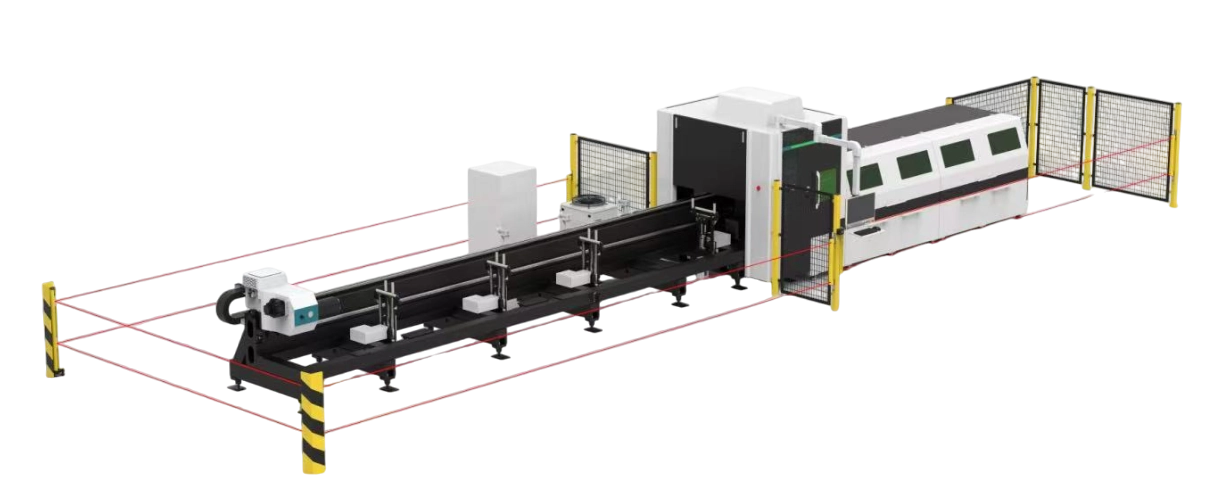

FABERTEC FIBER LASER TUBE CUTTER FLT2

The FABERTEC FLT2 Fiber Tube Laser Cutter is built for fabricators who need dependable, high-accuracy tube cutting without overcomplicating the process. Designed to handle mild steel tubes with wall thicknesses up to 15mm, it’s ideal for everything from general fabrication to heavier industrial applications. The FLT2 supports tube lengths of 6 to 7.2 metres and works confidently with both round pipes and square profiles like 25x25mm or 40x40mm.

Fitted with precision chucks and capable of cutting tubes up to 220mm in diameter, this machine gives you the cutting power and control needed for larger jobs—without needing to invest in bigger equipment. It’s enclosed for safety and cleanliness and includes a Class 4 laser safety system, ensuring a secure working area.

While the machine is supplied without automatic loading or unloading as standard, it’s built with flexibility in mind. You can add a loading system later if your production grows. Whether you're working on low-volume runs or larger daily batches, the FLT2 delivers reliable, clean results with tight tolerances every time.

Technical specification

  • Powerful MAX/RAYCUS Fiber Laser Source – ideal for cutting up to 15mm mild steel tube walls
  • Supports pipe/tube length up to 7.2 meters
  • Max cutting diameter up to 220mm – future-ready for larger profiles
  • High-precision chucks for accurate tube clamping and rotation
  • Fully enclosed design with light barriers – Class 4 laser safety compliant
  • Outgoing material length from chuck: approx. 1500mm
  • Ideal for fabrication, steelwork, furniture, and general tube processing
  • Optional extraction systems can be integrated for cleaner workshop environments
  • Heavy-duty welded steel structure for maximum stability
  • Option to add automatic loading system for improved efficiency
  • Compatible with DXF and PDF file input
  • Auto-focus laser head via software for consistent cutting results
  • Built-in cooling system with temperature regulation
  • Single control unit with user-friendly interface and large display
  • Two automatic tables installed
  •

Affordable prices to allow you to speed up your workshop processes.

  max laser  2kw  3kw  4kw  6kw
 FABERTEC FLT2 - €80,000         -          -
 Metal Dust Extractor Filtered 2M €7,200
 Metal Dust Extractor Filtered 4L €10,800
 Metal Dust Extractor Filtered 6L €14,500
 Metal Dust Extractor Filtered 8L €17,000
 Spare Filter €280
 Spare Valve €180



Lease Purchase

MODEL  TOTAL PRICE  MONTHLY  WEEKLY DAILY
 FLT2 3kW €80,000 €1,800 €415 €59

NOTE: Figures shown for a 5-year lease term; VAT payable upfront.

NOTE: VAT is not included in the price above.

Dust Extractors Included - 4L for 6kW | 6L for 12kW | 8L for 20kW & 30kW

Delivery

We provide free of charge delivery of the FLT2 machine. On the Client side you will need forklift 5t-7t with 2000-2400mm forks (dependable on model) to unload and position in workshop. After delivery our friendly and patient engineers will visit your workshop to finalise installation, commission and provide training.

Don't worry if on first day you may not be very fluent with all operations (most operators cut on their machines in about 1h). We will provide you with our WhatsApp number where engineers will help if stuck or doubt.

Warranty

  • 5 Year Full Warranty (Parts, Labour, Source, Head & UK Support) included - for all new Fiber Laser Machines supplied from 1st June 2025 onwards.
  • Obligatory maintenance visits every 12 months to keep your machine in top condition €1,500 + travel time (€90/h) + Fuel surcharge (€0.90/m)
  • Machines supplied earlier continue under their original terms and conditions.

What is Included in the Package?

Fully assembled machine ready for work from our UK based workshops, all consumables like nozzles, lenses. Laser source and matching chillers. Demineralised water to fill your chiller on installation day. Lifetime software to draw and operate machine. Delivery on hiab, installation and training. WhatsApp support to help operators with any issues.

Check out this video from our factory, new budget friendly Tube Cutter effortlessly cutting upto 240mm lightweight tubes.

Please note: This was a prototype from the development stage.

Some of the important features of the Fabertec FLT2 Tube Cutter

Features an enclosed cutting area with light barriers, built to meet Class 4 laser safety regulations, protecting the operator while maintaining visibility and access.
Built with a rigid steel structure to reduce movement, increase durability, and support accurate cuts over time, even during demanding workloads.
Designed to handle larger-diameter jobs if needed in the future - no need to upgrade the machine when your tube sizes grow. Pipe Processing (Square Tube) 10×10-150×150mm
Can be upgraded with an auto-loading attachment for improved production speed and reduced manual handling, especially for long tube runs.
Simple and easy-to-use software interface compatible with standard design files (DXF, PDF), reducing the learning curve and saving setup time.
The cutting head adjusts itself automatically based on tube thickness and shape, delivering clean edges and maintaining quality across different materials.
Integrated cooling system keeps laser temperature stable during long operations, ensuring consistent performance and extending machine life.
Capable of processing round tubes up to Ø220mm and common box sections like 25x25mm or 40x40mm, giving you flexibility to handle a variety of structural and decorative tube profiles.
Delivers excellent cutting performance on a wide range of tube materials and wall thicknesses, including up to 15mm in mild steel. Perfect for daily production needs and heavier-duty jobs.
Handles tube lengths up to 7200mm, ideal for standard pipe sizes used across construction, fabrication, and general metalwork industries.
